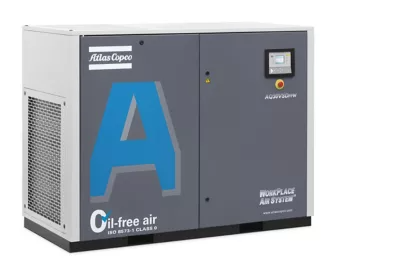

The AQ water-injected screw compressors meet your need for pure oil-free air. They deliver best-in-class energy efficiency for applications that demand reliability and purity.
Capacity FAD l/s :
21.9 l/s - 161.7 l/s
Capacity FAD :
198 m³/h - 546 m³/h
Working Pressure bar(e) :
7.25 bar(e) - 12.75 bar(e)
Installed motor power :
15 kW - 55 kW
Capacity FAD m³/min :
3.3 m³/min - 9.1 m³/min
The AQ eliminates the risk of contamination with 100% oil-free air for applications that require the highest levels of purity like - medical - pharmaceutical production - food production - critical electronics The water-injected screw compressors, water-cooled or air-cooled, meet your needs for quality air with high-pressure capability and energy efficiency.
Atlas Copco’s AQ oil-free compressors eliminate the risks of oil contamination. Whether your activities are in pharmaceutical production, food & beverage, critical electronics or in a similarly exacting industry, air quality is paramount for your end product and production process.
At Atlas Copco we aim to provide you with compressors that fulfill and even exceed your expectations and demands. Built as the result of decades of experience in oil-free design and manufacturing, the AQ range of oil-free screw compressors gives you all of this experience and knowledge in a class leading package.
Over 80% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco pioneered Variable Speed Drive (VSD) technology in the compressed air industry. VSD leads to major energy savings, while protecting the environment for future generations.
| Technical Property | Value |
|---|---|
| Capacity FAD l/s | 21.9 l/s - 161.7 l/s |
| Capacity FAD | 198 m³/h - 546 m³/h |
| Working Pressure bar(e) | 7.25 bar(e) - 12.75 bar(e) |
| Installed motor power | 15 kW - 55 kW |
| Capacity FAD m³/min | 3.3 m³/min - 9.1 m³/min |
| Title | File | |
|---|---|---|
| AQ 15 - 55 kW | 5.1 MB, PDF | ⬇ 5.1 MB, PDF |
