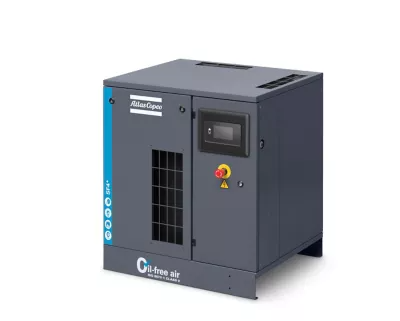

Atlas Copco belongs among one of the most expert scroll air compressor manufacturers. The SF and SF+ oil-free scroll compressors deliver absolutely pure oil-free air with supreme energy efficiency.
Capacity FAD l/s :
1.9 l/s - 40.8 l/s
Capacity FAD :
6.84 m³/h - 147.96 m³/h
Working Pressure bar(e) :
8 bar(e) - 10 bar(e)
Installed motor power :
1.5 kW - 22 kW
Capacity FAD m³/min :
0.11 m³/min - 2.45 m³/min
The SF and SF+ plus scroll compressors join our lineup of oil-free air technologies such as screw compressors, tooth and centrifugal, giving you, the customer, the perfect option for your needs and operations. This reliable scroll compressor is hosted in a small package, resulting in a small footprint.
SF scroll compressors are equipped with IE3 premium efficiency motors as standard. Unloaded power consumption is eliminated thanks to the simple start/stop control.
Moving parts have been reduced for a long operating life with minimal service interventions.
While the SF comes with a standard pneumatic controller, the SF+ features the Elektronikon®. This controller can be adapted to your specific needs with extra sensors, digital contacts, fieldbus, Internet and SMS communication functions.
The SF and SF+ scroll compressor run at a slow speed, and as a result, they are very quiet in their operations, as low as 53 dB(a). It makes the scroll compressor quieter than other technologies such as reciprocating compressors.
If you are looking for a reliable oil-free compressor, the SF scroll compressor has a minimal number of parts; this helps ensure long operating life helping limit the service interventions.
| Technical Property | Value |
|---|---|
| Capacity FAD l/s | 1.9 l/s - 40.8 l/s |
| Capacity FAD | 6.84 m³/h - 147.96 m³/h |
| Working Pressure bar(e) | 8 bar(e) - 10 bar(e) |
| Installed motor power | 1.5 kW - 22 kW |
| Capacity FAD m³/min | 0.11 m³/min - 2.45 m³/min |
| Title | File | |
|---|---|---|
| SF 1+-22+ (2024) API | 5.5 MB, PDFF | Download |
