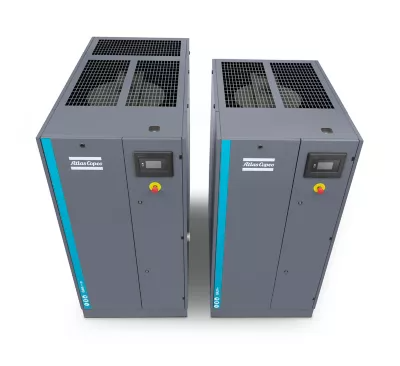

GA 37+ - 45+ oil-injected rotary screw compressor

Description

New GA 37+- 45+ compressors
New GA 37+- 45+ models come with IE4 motor and all-new element for +2.7% free air delivery and on average +3.2% energy efficiency.

In addition, these compressors are integrated with Elektronikon® Touch controller.

GA45+ oil-injected rotary screw compressor
Remarkably compact design
GA 37⁺- 45⁺ is designed with cramped production floors and utility rooms in mind. The standard version is 32% smaller than its predecessor

Premium performance
The GA+ compressors provide industry-leading performance and best-in-class Free Air Delivery. (FAD).

Lowest energy consumption
For applications with stable air demand.

Industrial applications
Marine
Mining
Automotive
Power generation
General industry
Chemical & Petrochemical
Textiles

GA 37+- 45+ is the gold standard in oil-injected rotary screw compressors
Atlas Copco continues to innovate and build products that are even more reliable, energy efficient, smart, quiet and compact. And that’s what we have achieved with the new GA 37+ - 45+ series.

The all-new new drive system significantly increases energy efficiency to give customers an extremely low cost of ownership.

Elektronikon® touch controller
The GA comes as standard with the Elektronikon® Touch controller. This robust controller performs reliably in dusty, warm or humid conditions.

Smart connectivity
You can even get SMARTLINK remote monitoring to maximize your air system performance and optimize maintenance intervals.

Atlas Copco’s most advanced controller
The Elektronikon® touch controller's easy-to-use touchscreen features cutting-edge control and monitoring capabilities.

Control and monitoring
Delayed second stop, different week schedules, and integrated control for up to 6 compressors.

Get a free quote from our Atlas Copco experts
Make an enquiry

Benefits

Technical benefits

• IE4-efficiency motor
  GA 37⁺- 45⁺ delivers supreme compressed air performance with 2.7% more free air delivery and on average 3.2% better energy efficiency
• Powerful cooling system with oversized coolers
  The fan meets the European ERP2020 energy requirements and is extremely quiet. This allows operators to run their GA on their work floor without noise disruption
  GA37plus compressor
  Find out more in the brochure
• Reduced downtime to service
  Maintenance-free drivetrain
  The new GA can be serviced half an hour faster than the previous model thanks to the completely maintenance-free drivetrain.
• Innovative design
  The innovative oil filter with quick connection allows for fast removal and installation of the filter.

Specifications

Technical Specifications

Technical Property	Value
Capacity FAD l/s	88 l/s - 150 l/s
Working pressure	7.5 bar(e) - 13 bar(e)
Installed motor power	37 kW - 45 kW
Capacity FAD	317 m³/hr - 539 m³/hr

Downloads

Brochures

Title	File
GA 37+-45+ Brochure	5.8 MB, PDF	Download
