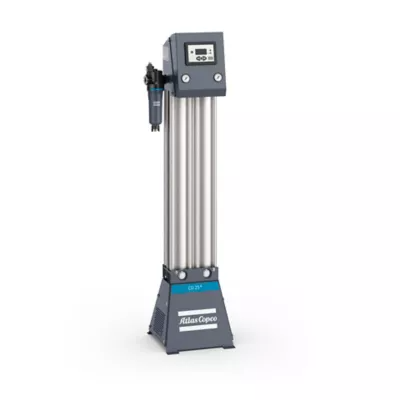

The CD 5⁺-335⁺ is the first dryer to use the revolutionary Cerades™ desiccant developed and patented by Atlas Copco.
Some innovations change everything. Take Cerades™, the first ever solid desiccant. Developed and patented by Atlas Copco, Cerades™ revolutionizes desiccant dryer design, efficiency and performance.
And that makes all the difference for you as you enjoy better air quality, lower energy and service costs, and health and environmental benefits. The new CD 5⁺-335⁺ is the first dryer to feature Cerades™.
.jpg_cq5dam.web.png)
CD⁺ is extremely powerful, efficient, reliable and quiet. Using it means environmental and health protection, lower operational costs, and less downtime.
The decomposing beads of traditional dryers release a fine dust into your air system. This dust is not only a health and environmental hazard but also creates additional filtration and maintenance costs. Cerades™ eliminates this dust issue altogether.
Cerades™ is vibration-resistant and can be mounted horizontally. This allows for easy installation and continuous operation in demanding applications such as the transportation industry.
Cerades™ dryers are smaller because they can handle a higher airflow. This reduced footprint gives you more free space and flexibility in your compressor room.

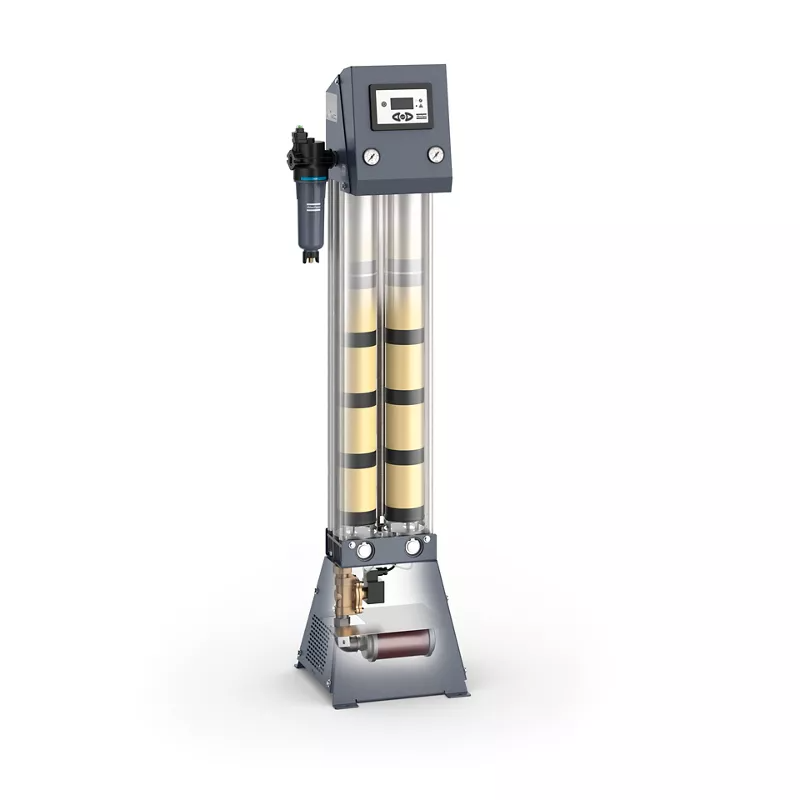

Traditional adsorption dryers force compressed air through towers filled with thousands of loose desiccant beads. In Cerades™ dryers, the air flows straight through solid tubes for a no-resistance flow and significantly lower energy costs.
Loose desiccant beads bounce around in the drying towers, which causes them to decompose over time. This can compromise your dew point. Cerades™ lasts longer to give you better air quality and extended service intervals.
State-of-the-art Elektronikon® Touch control and monitoring system with warning indications, dryer shutdown and maintenance scheduling.
| Technical Property | Value |
|---|---|
| Capacity FAD l/s | 34 l/s - 150 l/s |
| Pressure dew point °C | -20 to -40 |
| Inlet capacity FAD 7 bar(e) l/s | 5.5 to 330 |
| Pressure drop excluding filters | 0.04 to 0.3 |
| Title | File | |
|---|---|---|
| Desiccant dryers leaflet EN | 2 MB, PDF | Download |
